DESKTOP SOFTWARE // AUTOMOTIVE ECU // 03

ECU Diagnostic & Remapping.

Developed Windows desktop concept for Honda motorcycle ECU diagnostic and remapping workflows. Scope covers scanner flow, flasher flow, BIN validation, and serial communication.

CLIENT

Academic Portfolio Project

ROLE

Desktop Software Developer

CHALLENGE

ECU read-write operations require controlled file selection, hardware communication, operation states, safety constraints, and explicit user warnings.

SOLUTION

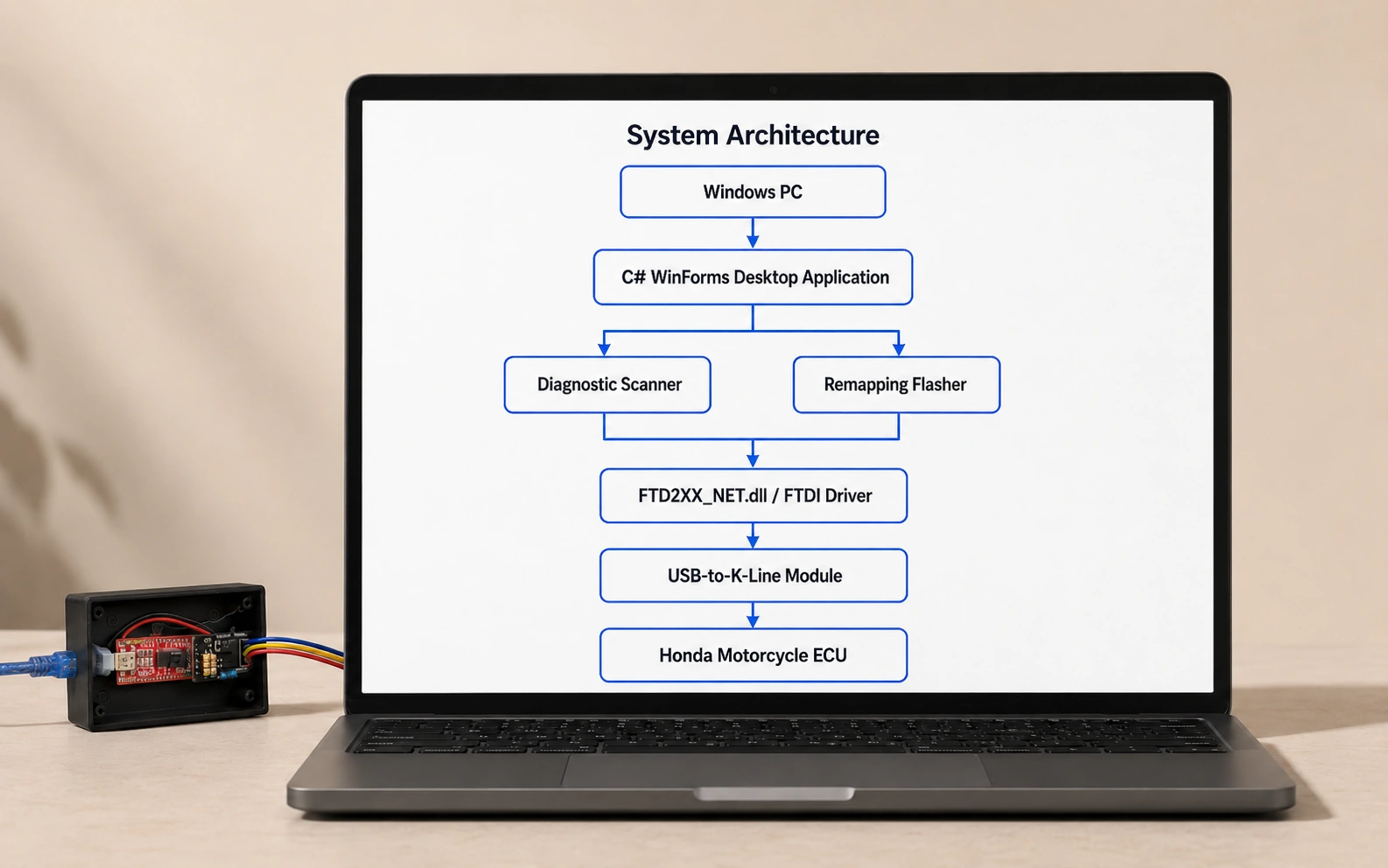

Implemented C# and WinForms interface concepts for scanner and flasher workflows, BIN file validation, SerialPort communication, downloadable demo packaging, and technical documentation.

KEY FEATURES

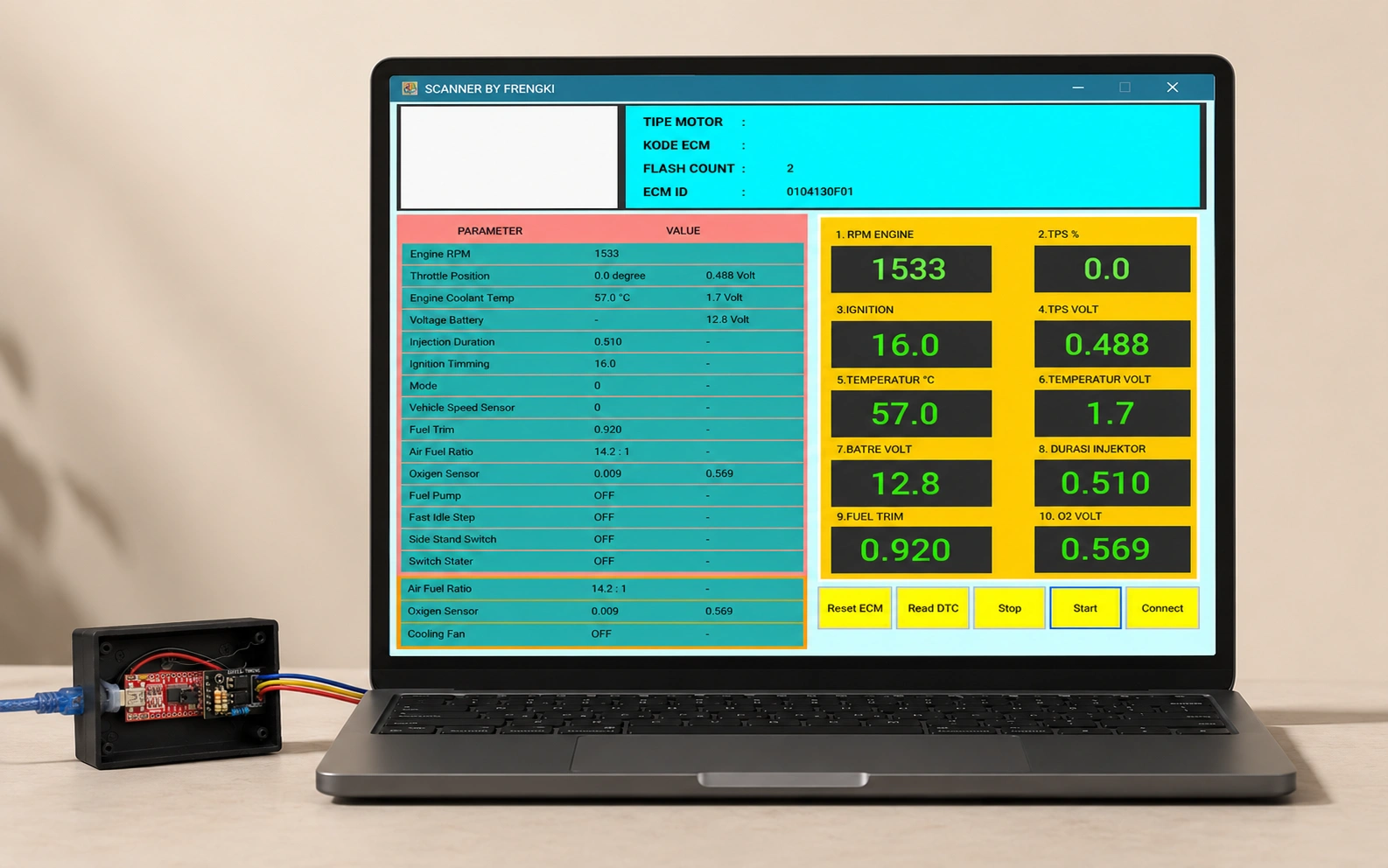

01ECU scanner workflow

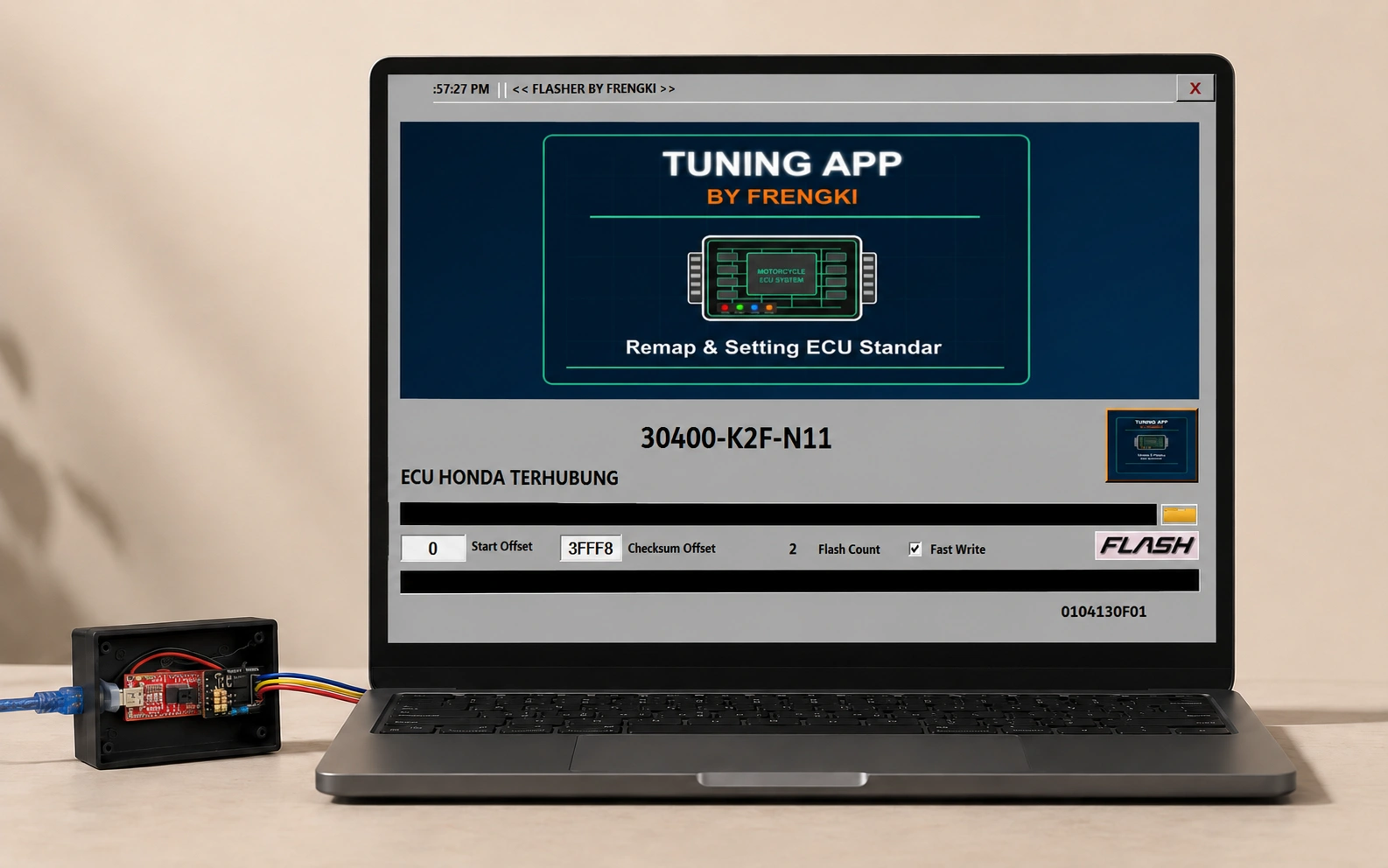

02ECU flasher and remapping workflow
03BIN file selection and validation

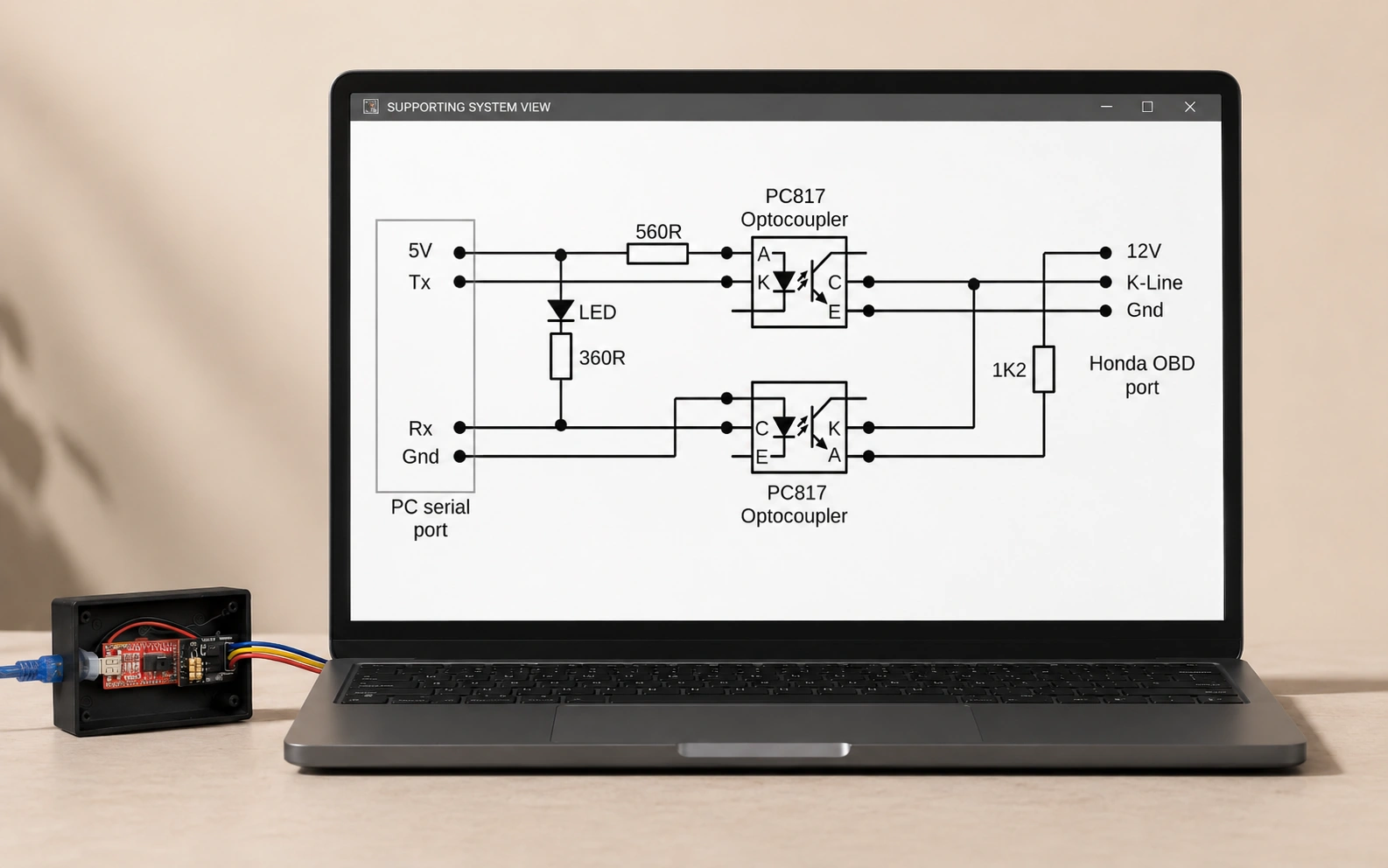

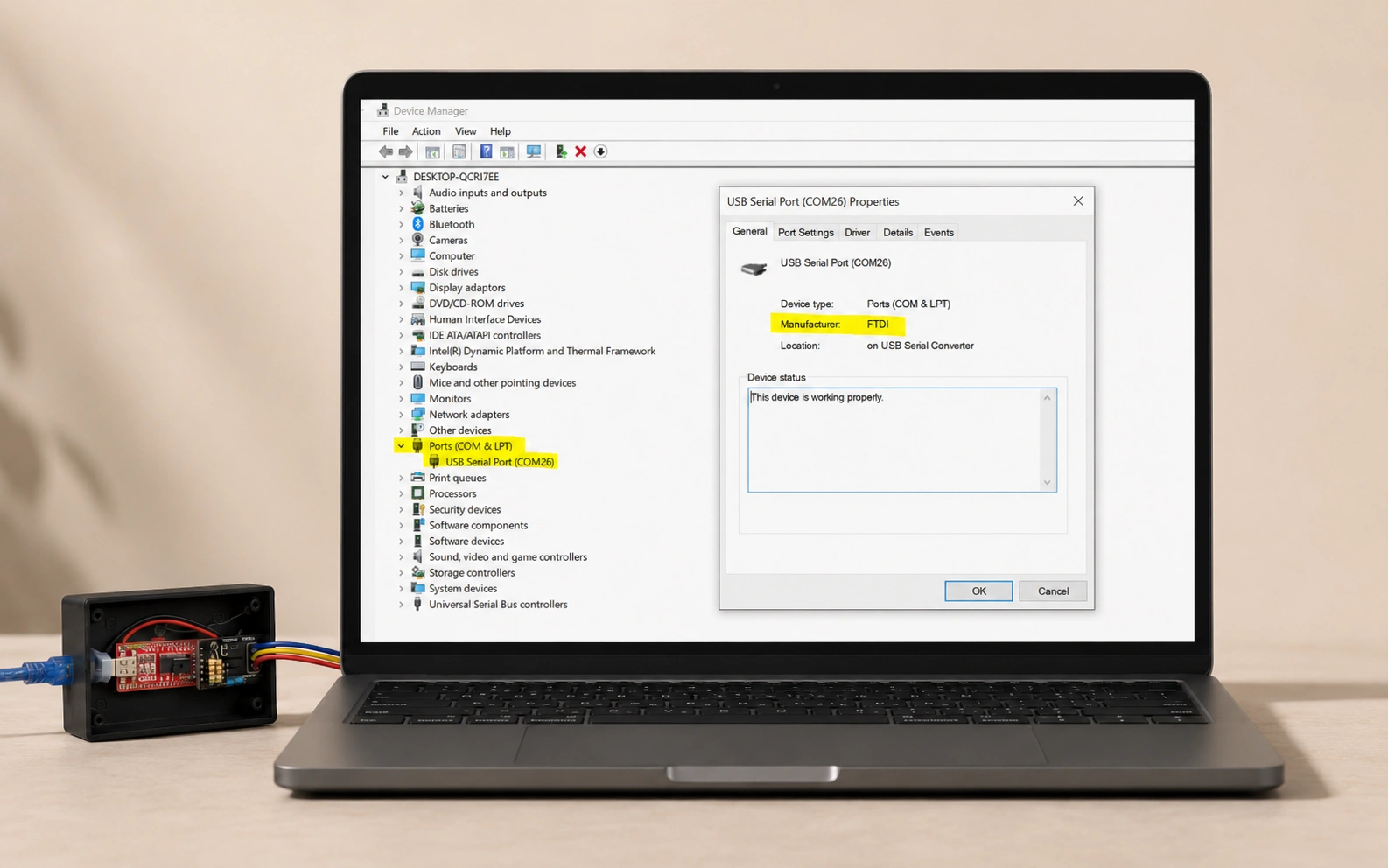

04FTDI and USB-to-K-Line integration concept
05Downloadable application package
06Safety warnings and documentation
07Landing page deployment

TECHNOLOGY

C#.NETWinFormsSerialPortHTML/CSS Landing Page

RESULTS

Delivered one academic desktop concept aligned with the undergraduate ECU diagnostic and remapping research topic.

PROJECT LINKS

LANDING PAGEVISIT

GITHUBVIEW

NOTE

Excludes real ECU files, proprietary calibration maps, checksum implementations, seed-key mechanisms, and unsafe operational instructions. Published material is limited to academic and technical demonstration.
